产品中心PRODUCTS

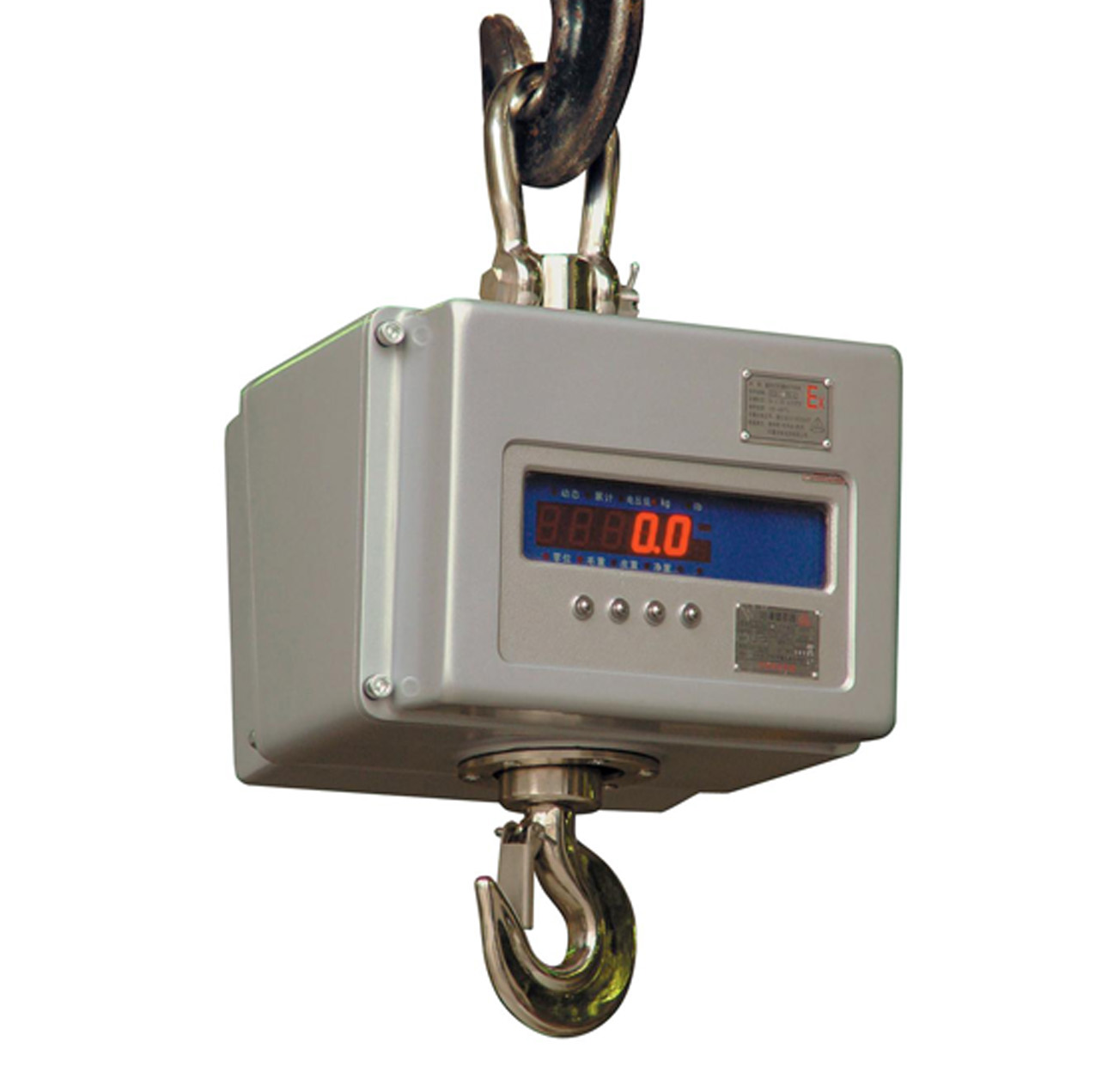

OCS-xxFBi-XZ直视式防爆电子吊秤
|
OCS-xxFBi-XZ直视式防爆电子吊秤功能及规格：
OCS-xxFB-XZ直视式防爆电子吊秤功能特点:|
型号 |
OCS-xxFBi-xz |
OCS-xxFB-xz |
|
防爆标志 |
ExiaIICT5;DIPA20TA,T4 |
Exd(Ib)ibIIBT4 |
|
防爆类型 |
本安 |
隔爆 |
|
防爆合格证号 |
GYB06808 |
GYB03457 |
|
表面允许温度 |
大于100摄氏度 |
大于135摄氏度 |
|
适应区域 气体：1/2区 |
||
|
准确度等级 |
III(GB/T II883-2002) |
|
稳定时间 |
<10 S |
|
可视距离 |
8米(LCD),15米(LED) |
|
使用温度 |
-10~+50摄氏度 |
|
相对湿度 |
10%~95%,无冷凝 |
|
秤体电源 |
本安电池3.5AH/8-11VDC |
|
型号 |
显示/防爆 |
容量/分度值 |
净重 |
单位:mm |
|||||
|
D |
F |
H |
Ø1 |
Ø2 |
Ø3 |
||||
|
OCS-0100FB-XZ |
LED/隔爆 |
100kg/0.05kg |
40 kg |
40 |
105 |
580 |
50 |
60 |
20 |
|
OCS-0100FBi-XZ |
LCD/本安 |
100kg/0.05kg |
|||||||
|
OCS-0250FB-XZ |
LED/隔爆 |
250kg/0.1kg |
|||||||
|
OCS-0250FBi-XZ |
LCD/本安 |
250kg/0.1kg |
|||||||
|
OCS-0500FB-XZ |
LED/隔爆 |
500kg/0.2kg |
|||||||
|
OCS-0500FBi-XZ |
LCD/本安 |
500kg/0.2kg |
|||||||
|
OCS-1FB-XZ |
LED/隔爆 |
1t/0.5kg |
|||||||
|
OCS-1FBi-XZ |
LCD/本安 |
1t/0.5kg |
|||||||
|
OCS-2FB-XZ |
LED/隔爆 |
2t/1kg |
50 kg |
45 |
140 |
750 |
60 |
90 |
28 |
|
OCS-2FBi-XZ |
LCD/本安 |
2t/1kg |
|||||||
|
OCS-3FB-XZ |
LED/隔爆 |
3t/1kg |
|||||||
|
OCS-3FBi-XZ |
LCD/本安 |
3t/1kg |
|||||||
|
OCS-5FB-XZ |
LED/隔爆 |
5t/2kg |
|||||||
|
OCS-5FBi-XZ |
LCD/本安 |
5t/2kg |
|
OCS-10FB-XZ |
LED/隔爆 |
10t/5kg |
70 kg |
67 |
175 |
900 |
85 |
100 |
36 |
|
OCS-15FB-XZ |
LED/隔爆 |
15t/10kg |
180 kg |
95 |
250 |
1230 |
118 |
140 |
52 |
|
OCS-20FB-XZ |
LED/隔爆 |
20t/10kg |
|||||||
|
OCS-25FB-XZ |
LED/隔爆 |
25t/10kg |
260 kg |
95 |
250 |
1230 |
118 |
140 |
52 |
|
OCS-40FB-XZ |
LED/隔爆 |
40t/20kg |
280 kg |
118 |
320 |
1400 |
150 |
180 |
70 |
